Protecting your privacy: asymmetric cryptography (part 2)

This is the second of four posts in which I discuss cryptography. If you read all four posts, you will understand the differences between symmetric and asymmetric cryptography, why the US government were against the spread of modern cryptography, how it has resulted in the first crypto war between code rebels (techno-libertarians) and the US government, and how you can easily protect your privacy using Pretty Good Privacy (PGP).

The topics of the four posts are:

  1. What is symmetric cryptography;
  2. What is asymmetric (public key) cryptography;
  3. The first crypto war between code rebels and the government;
  4. How to easily use PGP to protect your e-mail communication.

What is asymmetric (public key) cryptography

In my previous post, I mentioned four disadvantages of symmetric cryptography. These disadvantages are:

  1. The secret key must be shared between sender and receiver, before messages can be exchanged safely, preferably over a secure channel.
  2. The secret key is in two separate places.
  3. The sender of the message must trust the receiver that he will not steal or copy the secret key.
  4. It is not scalable for, for example, e-commerce.

Soon after the publication of the Data Encryption Standard (DES), asymmetric (public key) cryptography was invented by the Stanford graduate student, Whitfield Diffie, and Stanford Professor, Martin Hellman. This was a huge revolution within cryptographic research, because up until then it was thought that there should always be a shared secret key for the communication between the sender and receiver. The main question that Diffie and Hellman were trying to solve was: how can you create secure communication over a unsecure channel, when two corresponding people have never had contact with one another and therefore have not yet been able to share secret keys with each other.

The solution, public key cryptography, was introduced by Diffie and Hellman in their paper, ‘New Directions in Cryptography’ (1976). It inspired more cryptographic research outside the circles of secret agencies. Soon after the first publication on public key cryptography, three young Professors at MIT, Ron Rivest, Adi Shamir and Leonard Adleman, developed the now famous RSA public key cryptosystem in 1977.

Merkle Diffie Hellman
Ralph Merkle, Martin Hellman, and Whitfield Diffie. Merkle is known for his invention of Merkle trees, which is a tree-like structure of cryptographic hashes that organizes for example Bitcoin transactions. The public key cryptosystem, as published in ‘New Directions in Cryptography’, is mostly known as the Diffie-Hellman key exchange. Hellman, however, recognizes the contributions of Merkle for the Diffie-Hellman key exchange.
RSA
Adi Shamir, Ron Rivest, and Len Adleman. Inventors of the RSA cryptosystem.

Public key cryptography works as follows. There are two separate keys that correspond mathematically with one another: the public key and the private key. The public key is used to encrypt a message, and can be shared to other people. The private key is used to decrypt a message, and should be kept secret. Public key cryptography is hence a two way function. Just by knowing someone’s public key, it’s not possible to find out the person’s private key.

In our below example,

  1. Alice would like to send a secret love message to Bob.
  2. Bob has a corresponding public an private key, and sends the public key over a unsecure channel to Alice.
  3. Alice uses Bob’s public key to encrypt her secret love message.
  4. Alice sends the secret love message to Bob.
  5. Bob uses the corresponding private key to decrypt the message and finds out that Alice loves him.

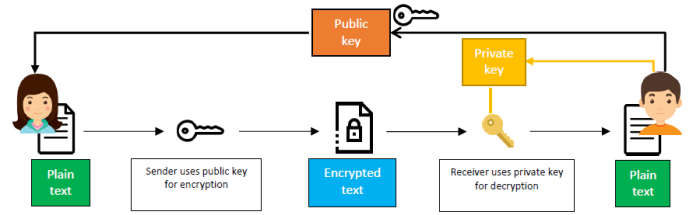

Public Key cryptography
Alice and Bob use public key cryptography to exchange secret messages.

Doing so, you can have private correspondence over an unsecure channel. Actually, we’re using public key cryptography all the time. Whenever you see a green padlock in front of the URL bar, it means that the data you enter on the website is first encrypted before it’s sent out.

Digital Signatures

Public key cryptography is not only used for the encryption and decryption of messages, but also for message authentication. If Alice would not have encrypted her message with Bob’s public key, but with her own private key, then the encrypted message can be decrypted with her public key. If you receive a message of John Locke and you’d like to know whether it’s really sent out by Locke, then you could look up his public key and use it to decrypt his message. If the result is plaintext, and assuming that Locke is the only person in the world who possesses the only private key that can produce the encrypted message, you can be sure that the message was sent by Locke. In other words: applying a private key to a message is the equivalent to putting a digital signature.

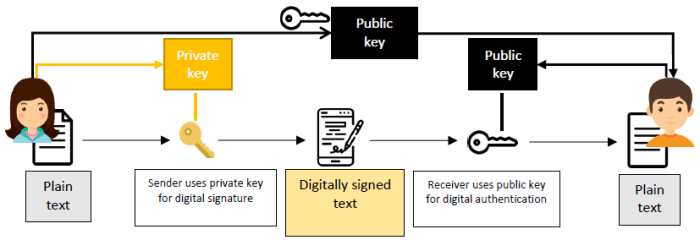

Digital Signatures
Alice puts a digital signature on her message, and Bob digitally verifies that the message is truly coming from Alice. This is an easy way of using digital signatures. In reality, a text is hashed first with a hash algorithm, before it is encrypted with the private key. Bob then uses Alice’s public key to decrypt the message to retrieve the hash, and compares the resulting hash with the original hash of Alice’s message.

Digital signatures are particularly important, because they provide the following security aspects:

  1. Authentication: it offers proof that the message comes from the right person.
  2. Non-repudiation: we cannot deny that the signee has sent it.
  3. Data integrity: the message cannot be altered after it has been signed.

Diffie and Hellman saw great potential for public key cryptography in the coming digital age. The US secret intelligence, however, were not happy with this development in cryptography and tried to prevent public use of this new cryptosystem. The standoff between privacy advocates of whom many were cryptographers and the US government is known as the first crypto war.

In part three of this series, we will discuss the crypto war. Eventually, at the end of the post series, you will be able to encrypt your e-mails using public key cryptography.

Protecting your privacy: symmetric cryptography (part 1)

In my previous post, I discussed the decline of internet freedoms around the world. While writing the post, I realized that I should follow-up on the topic and discuss how we can use cryptography to protect our communication from surveillance by governments and corporations.

This is the first of four posts in which I discuss cryptography. If you read all four posts, you will understand the differences between symmetric and asymmetric cryptography, why the US government were against the spread of modern cryptography, how it has resulted in the first crypto war between code rebels (techno-libertarians) and the US government, and how you can easily protect your privacy using Pretty Good Privacy (PGP).

The topics of the four posts are:

  1. What is symmetric cryptography;
  2. What is asymmetric (public key) cryptography;
  3. The first crypto war between code rebels and the government;
  4. How to easily use PGP to protect your e-mail communication.

What is symmetric cryptography

The use of cryptography is more than 4,000 years old. A classic example of symmetric cryptography is the Caesar cipher. It was used by Julius Caesar for his private correspondence with his generals.

The principle of the Caesar cipher is simple. The receiver of the message has to replace each letter with another letter, some number of fixed positions down the alphabet. If a Caesar cipher, for example, makes use of a rotation of three to the left,

  • A in the encrypted text becomes X
  • C becomes Z
  • E becomes B
  • etc…

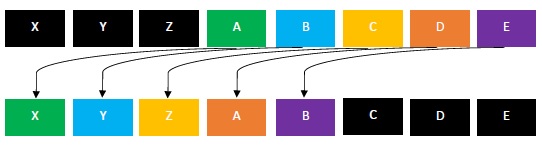

Caesar cipher
Caesar cipher: rotation of three to the left.

A Caesar cipher, compared to modern encryption methods, can be easily deciphered. You can for example make a frequency analysis of letters and see whether the letters in the encrypted text resemble typically Dutch or English writing. Also, each letter in the encrypted text only has 26 possibilities in the decrypted text, including itself. You can also make a table in which you write down the text and let a computer replace each letter with all 26 possibilities.

Up until the 1970s, cryptographers made use of this type of cryptography – also known as symmetric cryptography.

With symmetric cryptography, there is one key (the secret key) that is used for encrypting and decrypting the message. It’s therefore necessary for the sender of the message to share the secret key with the party he would like to correspond with.

The Caesar cipher is considered to be symmetric cryptography, because knowing the exact rotation (secret key) that is used to encrypt the message, you do also know how to decrypt the message.

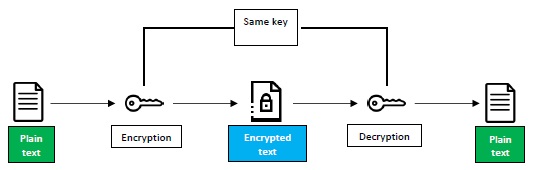

Symmetric cryptography
Symmetric cryptography. One key (the secret key) is used for the encryption and decryption of messages.

Disadvantages of symmetric cryptography

There are several disadvantages to symmetric cryptography.

The first disadvantage is that the secret key has to be shared between the sender and receiver for messages to be exchanged privately. Sending the secret key over an unprotected communication channel is not recommended. In the next post, we will see how asymmetric (public key) cryptography allows us to send the encryption key safely over unprotected communication channels, while keeping the decryption key safely in our own possession.

The second disadvantage is that the secret key is now on two different locations. Thus, there are now two points of attack.

The third disadvantage is that the sender has to trust the receiver that he will not steal or copy the key or give it to someone else. It’s comparable to sharing the keys to your apartment: you also have to trust the other person not to steal your key, or copy your key, or give the key to another person.

The fourth disadvantage is limited scalability. Assuming that we’d like to communicate with a great number of parties, and that we’d like to provide each party with a different secret key for security reasons, we’d need to maintain a database of secret keys. For this setup to be user friendly in an environment like the internet, it would probably require an infrastructure of specialized distribution centers that generate secret keys each time two parties would like to initiate a private conversation. As these distribution centers would hold many secret keys, it would be a honey pot for hackers.

An example of symmetric cryptography is the Data Encryption Standard (DES), which was released on the market in 1975. It was developed by IBM, and was primarily meant to protect electronic communication between large financial organizations. Up until DES, cryptography was mainly a field for governments’ secret intelligence agencies to protect state communication. When the DES was released, it was received very well by cryptographers, until people found out that the National Security Agency (NSA) was involved with the development of the encryption key and purposefully influenced IBM to limit the key sizes from 64 bits to 56 bits. With 56 bits, there are 2^56 possible key combinations. This is considerably less than 64 bits keys. It is therefore much easier to break the encryption. Cryptographers believed that it would just be a matter of time before someone would find the right keys through a brute force search – meaning that you are trying all possible key combinations to find the right one.

Symmetric cryptography was the way cryptography was done until 1976 when two young researchers from Stanford University, Whitfield Diffie and Martin Hellman, invented asymmetric or public key cryptography.

Both researchers were discontent with DES, and Hellman even addressed a letter to the Secretary of Commerce, Elliot Richardson, saying:

I am writing to you because I am very worried that the National Security Agency has surreptitiously influenced the National Bureau of Standards [NBS] in a way which seriously limit the value of a proposed standard, and which may pose a threat to individual privacy. I refer to the proposed Data Encryption Standard. … I am convinced that NSA in its role of helping NBS design and evaluate possible standards has ensured that the proposed standard is breakable by NSA.

In my next post, I will discuss how public key cryptography works. Eventually, at the end of the post series, you will be able to encrypt your e-mails using public key cryptography.
